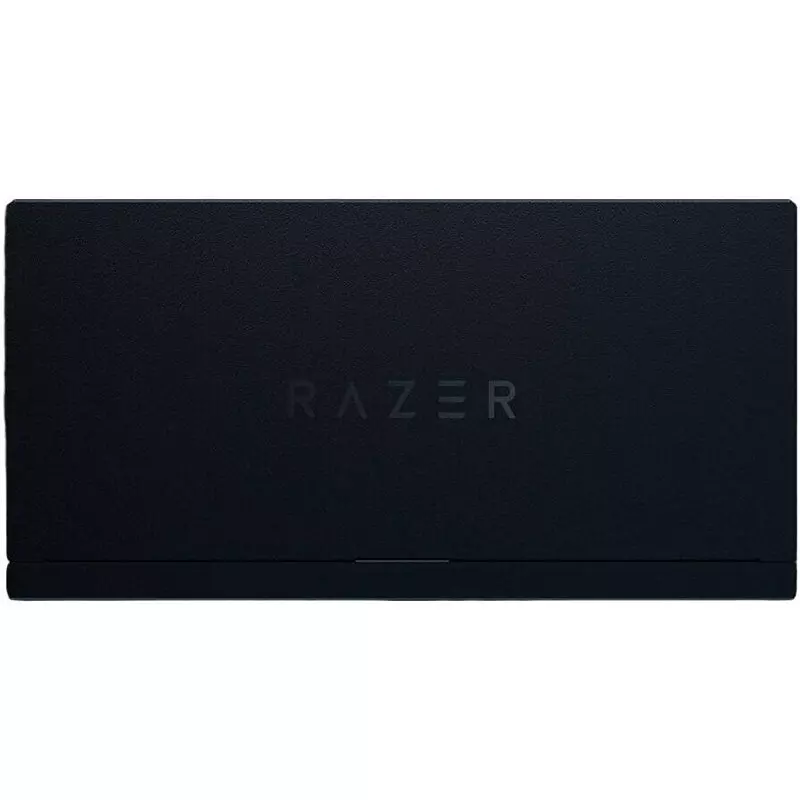

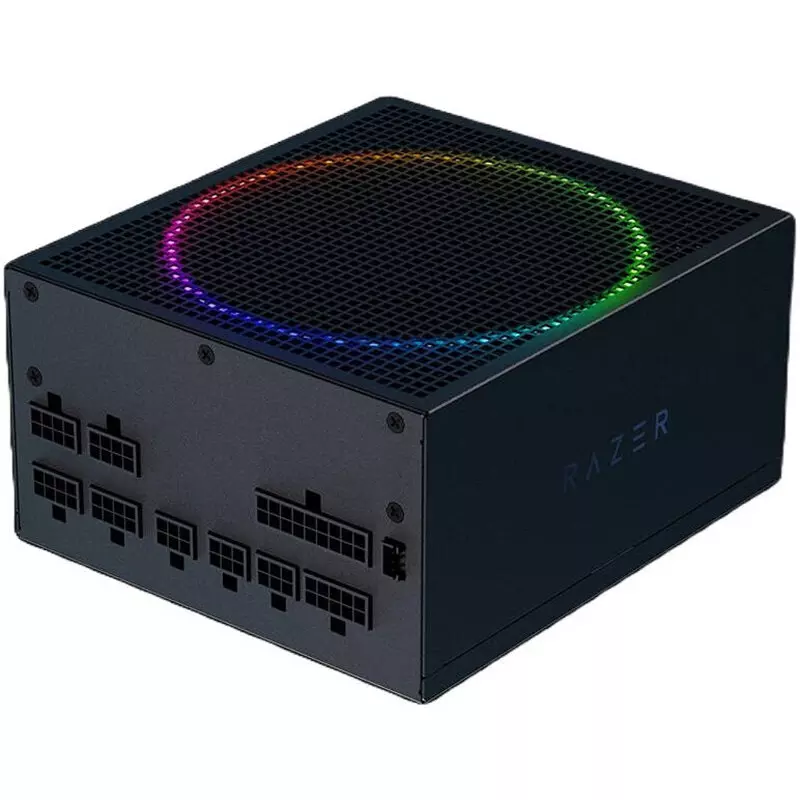

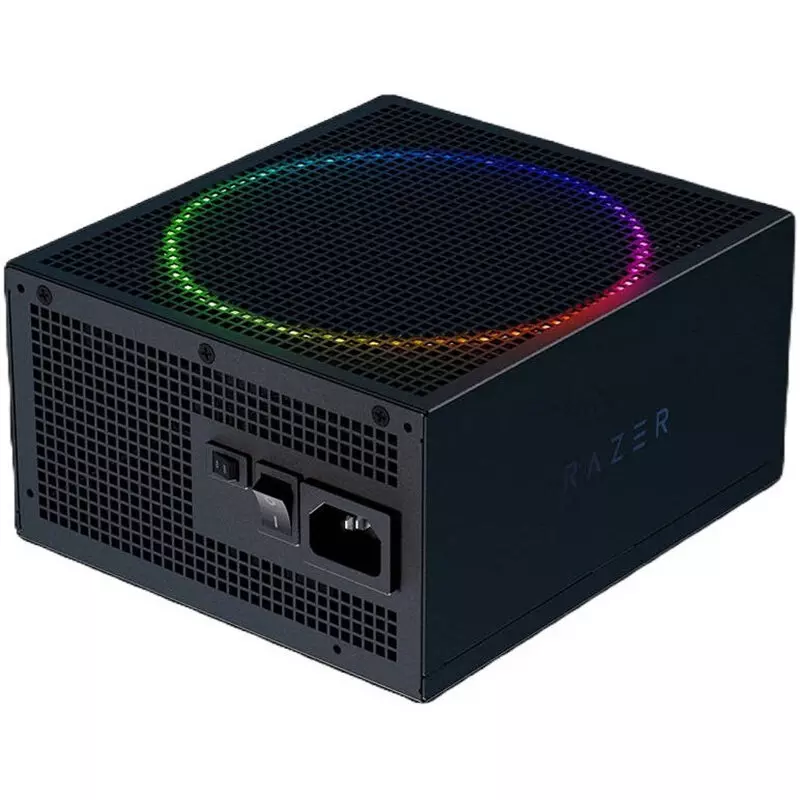

The Razer Katana Chroma 850W 80 Plus Platinum ATX Power Supply provides reliable performance and exceptional efficiency for high-end PC builds. Designed with Chroma RGB lighting, it offers a customizable lighting experience to complement your setup. With 850W power output, it supports demanding gaming and overclocking systems, ensuring stable performance.
Its 80 Plus Platinum certification guarantees maximum energy efficiency, reducing power loss while maintaining cool, quiet operation. Built with premium components, the Katana ensures long-lasting durability and optimal cooling for your gaming rig.
| Specification | Details |
|---|---|
| Type | ATX |
| 80+ Efficiency | Platinum – >90% at 115V |
| Input Voltage | 100 to 240V |
| Output Voltage | +3.3V, +5V, +12V |
| Output Current Single Rail | +3.3V (25 A), +5V (25 A), +12V (70 A), +12V (0.8 A), +5VSB (3 A) |

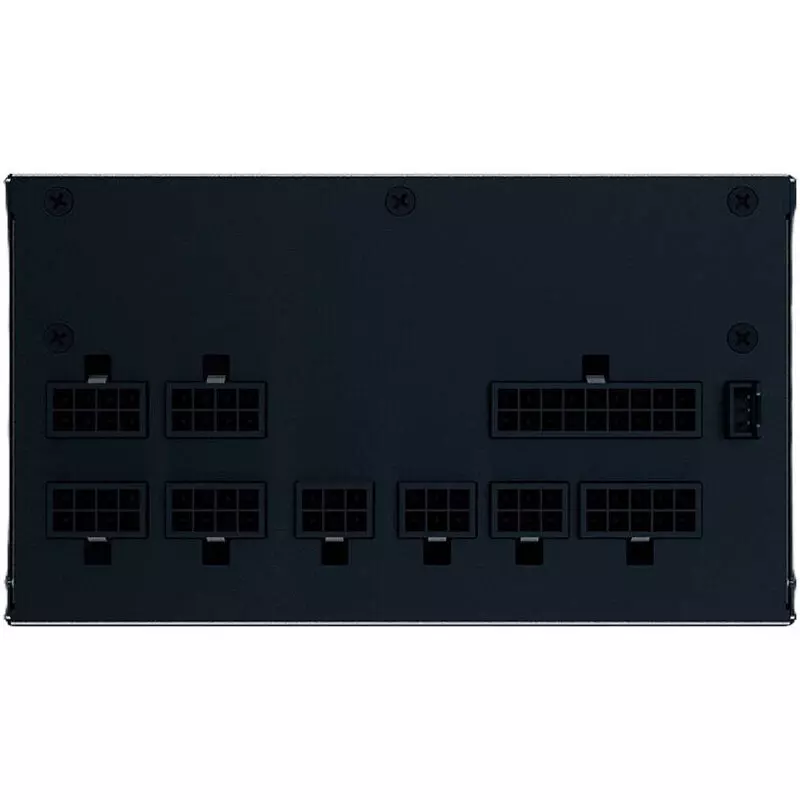

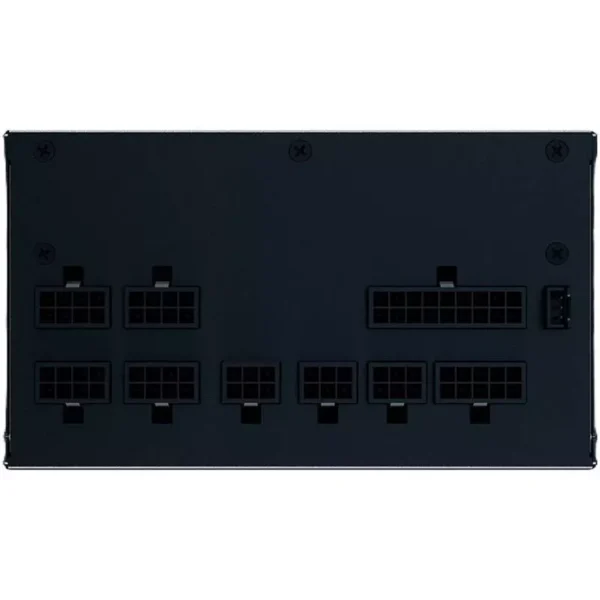

| Connectors | 1 ATX, 2 EPS, 4 x 6+2 pin PCIe, 8 x SATA, 4 x 4-pin molex peripheral, 1 Floppy |
| Capacitors | 105C Japanese |
| Cable Management | Fully modular |
| Cable Color | Black |
| PSU Color | Black |
| Fan Size | 140mm PWM |
| Fan Lighting | aRGB LED |
| Zero RPM Mode | Yes |
| Protections | Over-voltage, under-voltage, short-circuit, over-power, and over-temp |
| Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) / 6.3″ x 5.9″ x 3.38″ |
| Weight | 2.3 Kg / 5.7 lbs |
